Span-America offers a full line of
powered and non-powered support surfaces
and overlays to address both Treatment
and Prevention of pressure ulcers. Our
PressureGuard® and Geo-Mattress®
mattresses, and our varied line of
Geo-Matt® and Delta foam overlays and
traditional air mattresses give the
clinician the needed options in
addressing integrity of the skin and
deep tissues.


Geo-Mattress Series

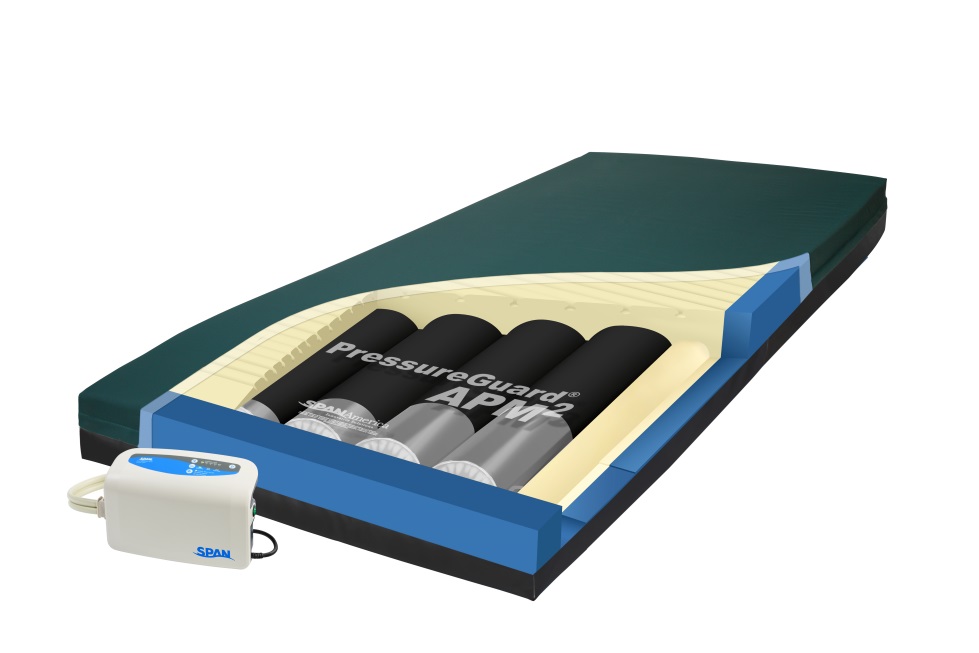

PressureGuard APM2 with
Deluxe Pump

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated desi gn
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2 Foam Topper
The patented
Geo-Matt® style foam topper is a high density, medical grade foam.
The unique geometric design consists of over 800 individual cells,
each of which acts individually to redistribute pressure, to reduce
heat and moisture buildup on the skin, and to reduce shear to
underlying tissues. This foam topper is 2" in height and includes
the unique Heel Slope™ feature, designed to further reduce pressure
for the sensitive heel area.
3 Safety
Edge Bolsters
Unique raised
perimeter Wings® design combines with the patented Safety Edge™
bolster system to encourage the patient toward the mattress and away
from entrapment or falls. Lowered, padded opening makes transfers
easier and safer for user and caregiver. The Safety Edge consists of
a firm 2-part foam bolster whose inner edge contours under pressure
to direct the patient towards the center of the mattress.
4 Air
Cylinders
The inflation
system consists of four urethane air cylinders that run head to foot
underneath the body and the foam topper. These cylinders perform the
Lateral Rotation Therapy. Inflation/deflation cycles are set but the
hand-held control pendant.
5 Micro-Processor
Motion Systems
Uniquely built
into the side of the mattress, the micro-processor controls air
pressures within the air cylinders, and is programmed by the hand-held
pendant.
6 Hand-Held
Control Pendant
Offers
convenient way for caregiver or patient to program the motion
system.

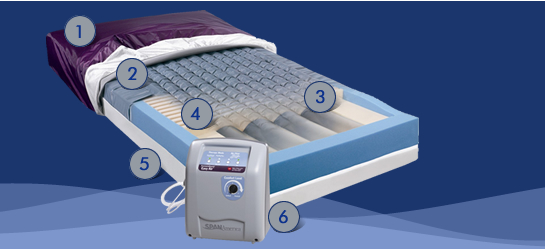

1 Outer
Removable Coverlet
The
purple-colored coverlet is fluid proof, cleanable and flame
resistant. It is highly vapor permeable (4500 grams/meter2/24
hours) and fluid-proof. Both of its fabrics (smooth top fabric
and the crush-proof air diffusion matrix fabric) are
bacteriostatic and maintain a pathway for air flow, even under
patient weight. Coverlet can be routinely wiped clean and
disinfected in place, or can be removed and machine laundered
according to owner’s manual.
2 Inner
Air-Delivery Cover
The
greenish gray, multi-layered cover supplies air to the
microenvironment between the cover and coverlet while
serving as a barrier to protect the inside of the mattress
from both fluids and vapors, Unlike the purple removable
coverlet, it is intended to remain on the mattress at all
times.
3 Air
Cylinders
The
inflation system consists of four air cylinders that run
lengthwise underneath the body. Unlike standard low air loss
systems, the Easy Air does not lose air from the inflation
system for "low air loss", and can be programmed to perform
either “flotation” or “alternating pressure.”
4 Foam
Shell – Geo-Matt topper
The
patented Geo-Matt® style foam topper is a high density, medical
grade foam. The unique geometric design consists of over 800
individual cells, each of which acts individually to customize
patient comfort, support, and pressure reduction and
redistribution. This foam topper is 2" in height and includes
the unique Heel Slope™ feature, designed to further reduce
pressure for the sensitive heel area.
5 Safety
Edge™ Bolsters
The
patented Safety Edge™ consists of a firm 2-part foam bolster
whose inner edge contours under pressure to direct the patient
towards the center of the mattress. This adds to patient
stability in sitting and lying down, and helps prevent falls and
entrapment between the siderail and the mattress.
6 Control
Unit
The quiet,
energy efficient control unit houses both a high volume air
blower and a lower volume air pump. The blower component
provides air for the low air loss function through the cover/coverlet,
while the pump component provides air to the air-cylinder
inflation system. The filters on the control unit need to be
cleaned regularly.



1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2 Foam
Topper
The
patented Geo-Matt® style foam topper is a high density, medical
grade foam. The unique geometric design consists of over 800
individual cells, each of which acts individually to
redistribute pressure, to reduce heat and moisture buildup on
the skin, and to reduce shear to underlying tissues. This foam
topper is 2" in height and includes the unique Heel Slope™
feature, designed to further reduce pressure for the sensitive
heel area.
3 Safety
Edge™ Bolsters
The
patented Safety Edge™ consists of a firm 2-part foam bolster
whose inner edge contours under pressure to direct the patient
towards the center of the mattress. This adds to patient
stability in sitting and lying down, and helps prevent falls and
entrapment between the siderail and the mattress.
4 Air
Cylinders
The
inflation system consists of four urethane air cylinders in
standard models, six in the APM Bariatric, that run head to foot
underneath the body and the foam topper. These cylinders perform
the alternating pressure therapy, and the lateral rotation
therapy in the APM2 models. Cylinders inflate and deflate in a
fixed 10-minute cycle or selectable cycle on the Bariatric
Model The cycles and inflation levels are designed to provide
and maintain low interface pressures throughout the mattress,
and to redistribute peak interface pressure points during the
alternating cycle.

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design allows
full integration with the mattress’s Geo-Matt style shear-relieving
surface while minimizing hammocking.
2 Inner Fire
Barrier Sleeve
This
feature meets requirements of NFPA 101 (“Life Safety Code”), Cal
TB 603 and 129, and BFD IX-11. Comes as standard feature on APM2
Safety Supreme.
3 Foam
Topper
The
patented Geo-Matt® style foam topper is a high density, medical
grade foam. The unique geometric design redistributes pressure,
reduces heat and moisture buildup on the skin, andreduces shear
to underlying tissues.
4 Safety
Edge™ Bolsters
Unique raised
perimeter Wings® design combines with the patented Safety Edge™
bolster system to encourage the patient toward the mattress and away
from entrapment or falls. Lowered, padded opening makes transfers
easier and safer for user and caregiver. The Safety Edge consists of
a firm 2-part foam bolster whose inner edge contours under pressure
to direct the patient towards the center of the mattress.
5 Air
Cylinders
The inflation
system consists of four urethane air cylinders that run head to foot
underneath the body and the foam topper. These cylinders perform the
Alternating Pressure Therapy, and the Lateral Rotation Therapy.
Cylinders inflate and deflate in a fixed 10-minute cycle.
6 Toggle
Switch
The toggle
switch changes modalities from “Alternating Pressure” to “Lateral
Rotation.” The switch is located under a velcroed fabric flap on the
side of the mattress at the foot end, as illustrated.
Control Unit
Model 5800 –
Comfort Dial on the Control Unit changes pressures inside the
cylinders within a small but perceptible range. This gives the
patient some control over firmness, without compromising pressure
redistribution or causing bottoming out. Static button evenly
inflates all air cylinders for stability during care or transfers.
Low pressure indicator assists in function and maintenance.

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2 Foam
Topper
The
patented Geo-Matt® style foam topper is a high density, medical
grade foam. The unique geometric design consists of over 800
individual cells, each of which acts individually to
redistribute pressure, to reduce heat and moisture buildup on
the skin, and to reduce shear to underlying tissues. This foam
topper is 2" in height and includes the unique Heel Slope™
feature, designed to further reduce pressure for the sensitive
heel area.
3
Safety Edge™ Bolsters
The
patented Safety Edge™ consists of a firm 2-part foam bolster
whose inner edge contours under pressure to direct the
patient towards the center of the mattress. This adds to
patient stability in sitting and lying down, and helps
prevent falls and entrapment between the siderail and the
mattress.
4 Air
Cylinders
The
inflation system consists of four urethane air cylinders that
run head to foot underneath the body and the foam topper. These
cylinders perform the alternating pressure therapy, Cylinders
inflate and deflate in a fixed 10-minute cycle. Inflation levels
are designed to provide and maintain low interface pressures
throughout the mattress, and to redistribute peak interface
pressure points during the alternating cycle.
Control
Unit
Comfort
Dial on the Control Unit changes pressures inside the cylinders
within a small but perceptible range. This gives the patient
some control over firmness, without compromising pressure
redistribution or causing bottoming out.

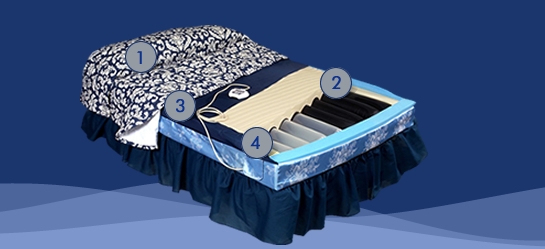

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style shear-relieving
surface while minimizing hammocking.
2 Foam
Topper
The
patented Geo-Matt® style foam topper is a high density,
medical grade foam. The unique geometric design consists of
over 800 individual cells, each of which acts individually
to redistribute pressure, to reduce heat and moisture
buildup on the skin, and to reduce shear to underlying
tissues. This foam topper is 2" in height and includes the
unique Heel Slope™ feature, designed to further reduce
pressure for the sensitive heel area.
3
Safety Edge™ Bolsters
The
patented Safety Edge™ consists of a firm 2-part foam
bolster whose inner edge contours under pressure to direct
the patient towards the center of the mattress. This adds
to patient stability in sitting and lying down, and helps
prevent falls and entrapment between the siderail and the
mattress.
4 Air
Cylinders and Reservoirs
Fourindividual,
interconnected air cylinders and two elasticized reservoirs
that automatically customize pressure distribution to the
individual patient. (Note: Bariatric models of 42", 48", and
54" widthshave6-8 cylinders, and 3-4 reservoirs.)Air
flows among the cylinders in response to the weight of the
body to equalize pressure throughout the system, provide a
constant, uniform distribution of safe pressures beneath the
patient, and prevent bottoming out.
5
Maintenance Access Ports
Easy access ports to use with
air system renewalkit.
Assures proper air pressures are maintained.

1 Cover
Fluid-resistant,
vapor permeable, washable cover with quilted backing, zipper in
the bottom.
2 Air
cylinders
Seventeen cylinders sequentially inflate/deflate every 10-minutes.
Can be replaced individually. Laser holes allow air flow.
3
Control Unit
Whisper-quiet, with low-pressure indicator light, comfort
adjustment dial, easy access filter, one-hand quick
connector.
4 CPR
pull
Vibrantly labeled tab for rapid deflation when CPR is needed.

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2 Foam
Topper
The
patented Geo-Matt® style foam topper is a high density,
medical grade foam. The unique geometric design consists of
over 800 individual cells, each of which acts individually
to redistribute pressure, to reduce heat and moisture
buildup on the skin, and to reduce shear to underlying
tissues. This foam topper is 2" in height and includes the
unique Heel Slope™ feature, designed to further reduce
pressure for the sensitive heel area.
3
Safety Edge™ Bolsters
The
patented Safety Edge™ consists of a firm 2-part foam bolster
whose inner edge contours under pressure to direct the
patient towards the center of the mattress. This adds to
patient stability in sitting and lying down, and helps
prevent falls and entrapment between the siderail and the
mattress.
4 Air
Cylinders
Four
individual, air cylinders that automatically customize
pressure distribution to the individual patient. Air
cylinders provide a constant, uniform distribution of safe
pressures beneath the patient, and prevent bottoming out.
5
Maintenance Access Ports

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2 GeoMatt
cut foam top
The
patented Geo-Matt® style foam topper is a high density, medical
grade foam. The unique geometric design consists of over 800
individual cells, each of which acts individually to
redistribute pressure, to reduce heat and moisture buildup on
the skin, and to reduce shear to underlying tissues. This foam
topper is 2" in height and includes the unique Heel Slope™
feature, designed to further reduce pressure for the sensitive
heel area.
3
Multi-tiered core
Beneath
the Geo-Matt top, the core is made of two progressively denser
premium foam layers for improved support and longevity.
4 Firm
Perimeter Bolsters
Firmer
edges provide safer transfers, more stable edge-of-bed sitting,
and reduced risks of entrapment in siderail/mattress gaps.
5 Visco-elastic
Heel Slope
Heel slope
reduces pressure on heels with a subtle taper design that
redistributes pressure onto the more load-tolerant calves.
Viscoelastic insert conforms to the shape of the heel, further
redistributing heel pressure.

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2 Geo-Matt
cut foam top
The
patented Geo-Matt® style foam topper is a high density, medical
grade foam. The unique geometric design consists of over 800
individual cells, each of which acts individually to
redistribute pressure, to reduce heat and moisture buildup on
the skin, and to reduce shear to underlying tissues. This foam
topper is 2" in height and includes the unique Heel Slope™
feature, designed to further reduce pressure for the sensitive
heel area.
3
Multi-tiered core
Core is
made of dual-layer, progressive-resistance foams for patient
comfort and clinical effectiveness.
4 Heel
Slope
Heel slope
reduces pressure on heels with a subtle taper design that
redistributes pressure onto the more load-tolerant calves.

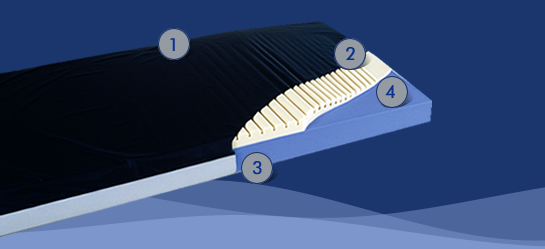

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2 GeoMatt
cut foam top
The
patented Geo-Matt® style foam topper is a high density, medical
grade foam. The unique geometric design consists of over 800
individual cells, each of which acts individually to
redistribute pressure, to reduce heat and moisture buildup on
the skin, and to reduce shear to underlying tissues. This foam
topper includes the unique Heel Slope™ feature, designed to
further reduce pressure for the sensitive heel area.
3 Core
Geo-Matt
top surface and entire mattress are made of single density and
ILD, high quality foam for excellent value for budget-conscious
facilities.
4 Heel
Slope
Heel slope
reduces pressure on heels with a subtle taper design that
redistributes pressure onto the more load-tolerant calves.

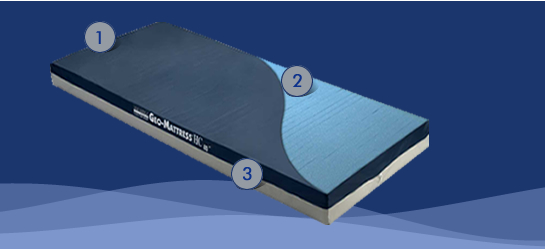

1
Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2
Cross-cut foam top
The
cross-cut cells individually conform to the patient’s curves to
assist in pressure redistribution.
3 Core
High-density, open-cell combustion modified foam for consistent
performance.

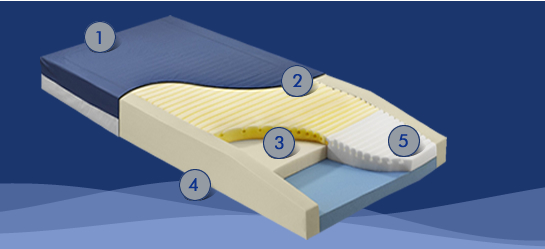

1 Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design allows
full integration with the mattress’s Geo-Matt style shear-relieving
surface while minimizing hammocking.
2 GeoMatt Cut
Foam Top
The patented
Geo-Matt® style foam topper is a high density, medical grade foam.
The unique geometric design consists of over 800 individual cells,
each of which acts individually to redistribute pressure, to reduce
heat and moisture buildup on the skin, and to reduce shear to
underlying tissues. This 2” foam topper includes the unique Heel
Slope™ feature, designed to further reduce pressure for the
sensitive heel area.
3 Core
Geo-Matt top
surface and entire mattress are made of single density and ILD, high
quality foam for excellent clinical performance and value.
4 Raised
Perimeter Edges
Stable,
high-density side bolster with angled top surface forms a firm base
for the Geo-Matt top that covers the mattress top side to side. The
bolster and the angled top helps to encourage patients to stay in
bed and discourage rolling or unattended bed exits. The raised edge
minimizes gaps between the bedrail and the mattress, limiting the
risk of entrapment.
5 Heel Slope
Heel slope
reduces pressure on heels with a subtle taper design that
redistributes pressure onto the more load-tolerant calves.

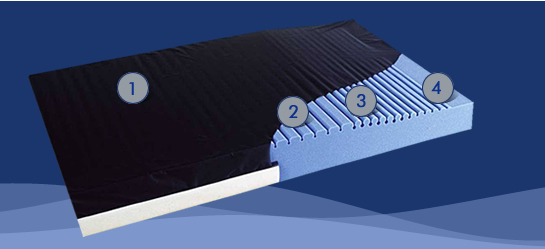

1
Cover
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style
shear-relieving surface while minimizing hammocking.
2 GeoMatt
cut foam top
The
patented Geo-Matt® style foam topper is a high density,
medical grade foam. The unique geometric design consists of
over 800 individual cells, each of which acts individually
to redistribute pressure, to reduce heat and moisture
buildup on the skin, and to reduce shear to underlying
tissues. This foam topper is 2" in height and includes the
unique Heel Slope™ feature, designed to further reduce
pressure for the sensitive heel area.
3
Multi-tiered core
Beneath the Geo-Matt top, the core is made of three
progressively denser premium foam layers of high resiliency
foam. We put the most patient-friendly surface next to the
skin, and layer progressively firmer layers to deflect
pressure in stages for improved support and longevity across
a wide range of patient weights.
4 Heel
Slope
Heel
slope reduces pressure on heels with a subtle taper design
that redistributes pressure onto the more load-tolerant
calves.
Geo-Mattress 350
Surfaces>Prevention>Geo-Mattress
Foam>Geo-Mattress 350
High-Value Option Meets Multiple
Needs
Segmented top surface, 6"
height, and fluid-proof cover
make the 350 a great choice for
heavier home care patients. Or,
an economical yet effective
option for long term care
residents.

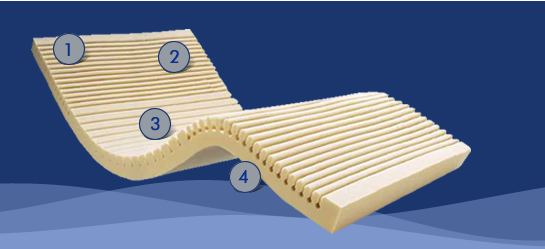

1 GeoMatt
cut foam top
The
patented Geo-Matt® style foam topper is a high density, medical
grade foam. The unique geometric design consists of over 800
individual cells, each of which acts individually to
redistribute pressure, to reduce heat and moisture buildup on
the skin, and to reduce shear to underlying tissues. This foam
overlay is 3.5” in height.
2 Upper
head section and lower foot section
Cells are
smaller at the head and foot section to disperse pressure over
these sensitive areas.
3 Body
section
Cells are
larger to provide pressure dispersion over the torso.
4 Inset of
Geo-Matt close-up
The
patented Ring-of-Air performs several functions. It allows each
cell to act individually to conform to the body. It assists in
removing heat and moisture from the body by channeling heat and
vapor away. And it reduces shearing by allowing the individual
cells to move independently, reducing pull on the skin.
Optional
Cover (see below)
The
bacteriostatic top fabric is fire resistant, fluidproof, tear
resistant, cleanable, and replaceable. The pleated design
allows full integration with the mattress’s Geo-Matt style shear-relieving
surface while minimizing hammocking.
Soft Skin
also available, see below.
Delta Pediatric Overlays
Surfaces>Prevention>Overlays>Delta
The middle
layer of the Delta overlay has a series of unique, 5-sided cutsthatallow
the body to immerse intothe pad, while presenting a flat
surface to the patient. Thisflat surface may assist in
eliminatingbreathing interference whenthe patient lies prone
on the surface.
The Delta
is proven inpediatric settings (see study at right), and is
designed to alleviate the head and scapular pressuresthat often
arise because infants' heads are large and babies tend to lie on
their backs for long periods of time. Delta provides low
interface pressures over thehead and body of the infant.Delta
overlays are safe, non-toxic, heat-resistant and comfortable.
Outstanding specialty surface for patietns less than70 lbs.
Convoluted Foam Overlays
Surfaces>Prevention>Overlays>Convoluted
Our
convoluted comfort overlays are made from high-quality,
combustion modified polyurethane foam. Available in a wide range
of
peak and base
heights and foam densities to address
different levels of surface discomfort. All pads are 72"L x
34"W, and are compression rolled for efficient storage.
Note:
Convoluted overlays are considered effective as a comfort
measure only. Consult with your Span-America representative for
help in selecting the pressure management support surface most
effective for your patients' needs.
Bariatric
Surfaces>Bariatric
Span-America offersthree clinically proven support surfaces
for users up to 750 lbs., and one for up to 1000 lbs. See
the
Bariatric catalog page
for allfour products.

1 Sizes
In-Home
Styles are PressureGuard therapeutic mattresses that come in
Full, Queen and King bed sizes. They can be placed on standard
box springs or on specialty bed frames.
2 Air
Cylinders
The
therapeutic air cylinder system can be placed in the center of
the mattress or on the patient’s right side, as pictured.
3 Cover
The cover
is made in a home-style rather than a medical style. The bottom
is a light blue cloth, and the top is a dark blue moisture
barrier fabric.
4 Safety
Edge™ Bolsters
The
patented Safety Edge™ consists of a firm 2-part foam bolster
whose inner edge contours under pressure to direct the patient
towards the center of the mattress. This adds to patient
stability in sitting and lying down, and helps prevent falls and
entrapment between the siderail and the mattress.
WORLD'S LOWEST
PRICES: (800)477-0248
Please
call for an Illustrated Brochure and Price List (800)477-0248
Email:
ElaineLatham@comcast.net
CONTACT
WORLD'S LOWEST PRICES
HOSPITAL BEDS
Home
WORLD'S LOWEST
PRICES: (800)477-0248
Please
call for an Illustrated Brochure and Price List (800)477-0248
Email:
ElaineLatham@comcast.net
Span America /
SpanAmerica / SpanAmerica.com Searching Words:
pics info
pictures video hospital bariatric electrically used lifting American
care centers clinic healthcare clinics center equipment supplies
rehab services resources sale big insurance mobility obesity lifters
pricing rating power motorized powered automatic electronic company
electrical home page www com cheap sale benefits mobility medical
elderly senior my about best quality prices buy co cost usa discount
online store dealer manufacturer factory review information
Span America /
SpanAmerica / SpanAmerica.com
Our Philosophy:
Communication is Key
When you call us we will
genuinely and sincerely help you find the right
Span America / SpanAmerica / SpanAmerica.com
at the right price. We are here working for you and your
satisfaction as our first and foremost priority.Communication is
the key to finding the correct
Span America / SpanAmerica / SpanAmerica.com
and model for your height, weight, age, physical and environmental
conditions. We believe that talking first, the old fashioned way,
is the most effective way to ensure your satisfaction with the
purchase. Buying online, by yourself, in our opinion, is a little
too complicated, important and expensive a decision to make without
first talking to a trained
Equipment Specialist.
We are also the actual
manufacturer of the Electropedic
®Model
585, America's best-built electric
adjustable bed.
We were the FIRST! Electric Home Care Equipment Company. In fact,
we invented the industry!
We appreciate that Cost is a
key factor for everyone, whether you are a millionaire or are
primarily living off Social Security. That is why during our
Communication we let you tell us if you are looking for the most
economical solution or the most luxurious solution for you.
We GUARANTEE THE LOWEST
PRICE!
Results are what we are both
after: We understand that you want a
Span America / SpanAmerica / SpanAmerica.com
that will be the best for you. We understand that the only way you
will come back to us or recommend us to your friends and family is
by your satisfaction. Today, 25% of our business is built upon
repeat and referral customers. Many of our customers have
purchased from us 3 and 4 times. If you are not happy with the
outcome then, maybe, we did communicate as well as possible with you.
This much is certain: no one will know more about the
electric home care industry
than us, no one will care more about getting you the right
Span America / SpanAmerica / SpanAmerica.com
and model, and no one will offer you a better price.
All Our Customers Get Our Lifetime Good-Service Commitment.

We pride ourselves on doing something for the
Quality of Your Life. When you call our company we start with an "Initial
Intake Form" to ensure we have the right knowledge to help you get
the right
Span America / SpanAmerica / SpanAmerica.com
and model.It
all starts with Communication.Our
motto since 1964 has been "Your Comfort Is Everything!" . . . and
when you have been doing the same thing for 45 years, you get pretty
good at it.
GUARANTEED
LOWEST PRICE: Please call (800)477-0248
No
one knows more about the Electrical Home Care Products Industry.
No one will Care
more about getting you the Right Product, Model and Options.
No one will get you a better Price.
No one will give you better Service after the sale.
We know that Cost is a key factor, whether you are a millionaire or
are primarily living off Social Security.
Please
contact
us for the
WORLD'S LOWEST PRICES GUARANTEED.
